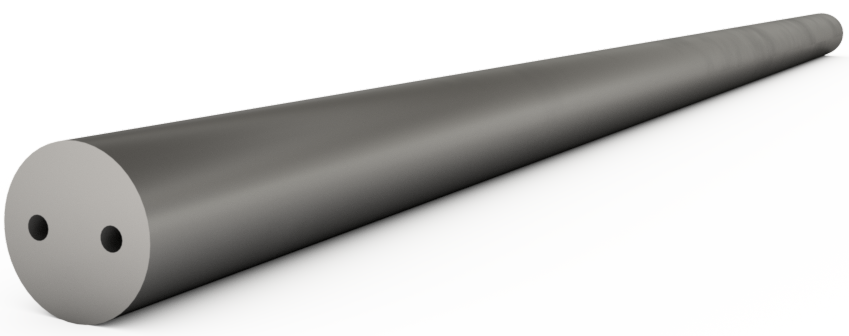

2 Hole Straight 16mm x 330mm 5.0mm Bolt Circle 1.5 Duct Size Unground 10% Cobalt Grade 9008

Diameter: 16.0mm

Diameter (Decimal): 0.63"

Tolerance: +0.45mm/-0mm

Length: 330mm

Diameter (Decimal): 12.992"

Chamfer: None

Tolerance: +3.5mm/-0mm

Duct Size: 1.5mm

Diameter (Decimal): 0.0591"

Bolt Circle: 5.0mm

Diameter (Decimal): 0.197"

Pitch: None

Weight: 2.1210 lbs.

Material: Tungsten Carbide

Grain Size: Sub-Micron

Grade: 9008

Hardness: 92.1 HRa

TRS (MPa): 3700

Surface Finish: As Sintered
